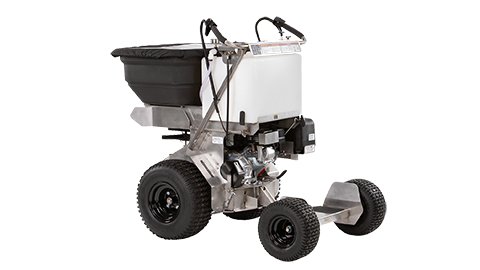

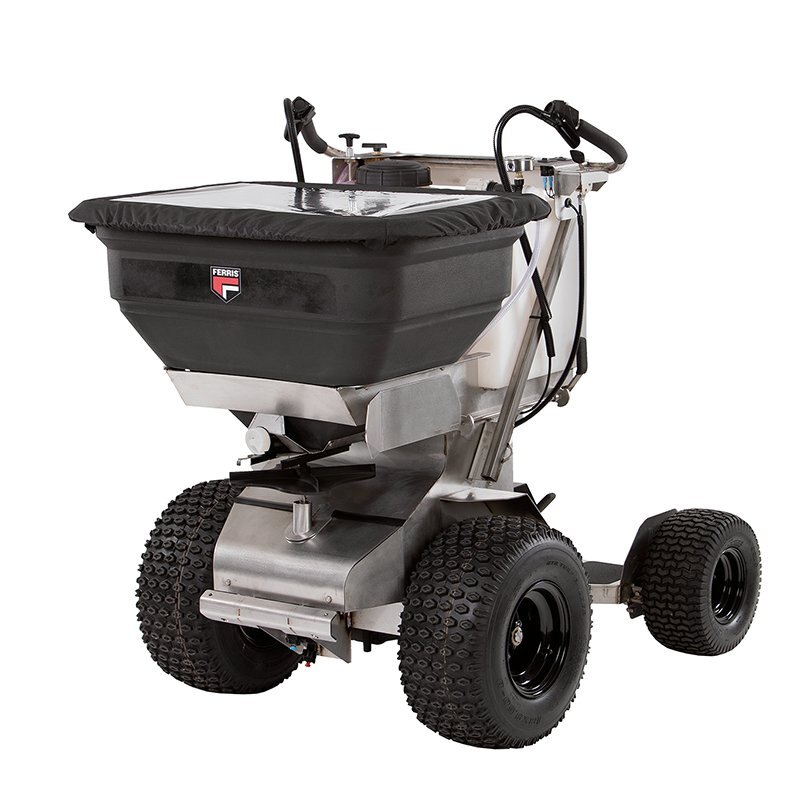

Ferris - Pathfinder XC™ FS2200 Ride-On Spreader/Sprayer

  • Ferris Pathfinder XC™ FS2200 Ride On Spreader/Sprayer
  • Ferris Pathfinder XC™ FS2200 Ride On Spreader/Sprayer
  • Ferris Pathfinder XC™ FS2200 Ride On Spreader/Sprayer
  • Ferris Pathfinder XC™ FS2200 Ride On Spreader/Sprayer
Call for Price
 Get a Quote  Get Financed  Value a Trade  Book a Demo   Get Directions  Print
Overview

DRY COVERAGE OVER ONE ACRE AND MAXIMUM LIQUID COVERAGE OF 1.4 ACRES

The Pathfinder XC™ FS2200 is an upgrade and rugged ride-on spreader/sprayer that releases increased amounts of both dry and liquid material. The spray system allows two settings, a 3' trim setting and a 10' broadcast spray for use in a variety of applications. A 100% stainless steel frame and coated Peerless transaxle resist corrosive chemicals for added life. Its narrow width of only 35.5" allows for easy access through gates for residential areas and condominium complexes.
Specifications
Model
5901753
Year
2023
Sale Type
New
Manufacturer
Ferris Mowers
RPM
Full Speed: 3750 RPM (No Load) Idle: 1400 RPM
Nozzles
Broadcast: Turbo FloodJet TF-VS5 Trim: TurboTeeJet TT11004VP
Fuel Type
Regular unleaded gasoline, 87 octane or higher
Rear Tires
13 x 6.50 - 6
Spray Pump
2.0 gpm mechanically driven diaphragm pump
Spray Rate
Adjustable from 1/4 to 1/2 gallon per thousand feet
Front Tires
18 x 9.5 - 8, RB antifreeze added for ballast and traction
Speed (mph)
Low Gear: 3.5 mph (5.6 km/hr) High Gear: 5.0 mph (8.0 km/hr)
Engine Brand
Honda® GX200-URH2
Engine Model
5901753
Spreader Model
Spyker 220 Series
Safety Interlock
This machine is equipped with a neutral safety start module. To start the engine, the transmission must be in the neutral (N) position.
Transmission Model
Peerless 855 Series, coated for corrosion
Fuel Shut-Off Valve
Located on engine and below tank
Dry Weight - Lbs (kg)
450 (204)
Accessories Warranty
Standard: 1 year Rental: 90 days
Full Weight - Lbs (kg)
670 (304)
Overall Width - In. (cm)
35.5 (90)
Fuel Capacity - Gal (L)
2.5 gal (9.5 L)
Overall Height - In. (cm)
49.0 (124)
Overall Length - In. (cm)
58.0 (147)
Spreader Hopper Capacity (lbs.)
200
Sprayer Tank Capacity - Gal (L)
16.0 (60.6)
Belts, Tires, Brake Pads, Hoses, Battery Warranty
Standard: 90 days Rental: 90 days
features

Ferris Pathfinder XC™ FS2200 Ride On Spreader/Sprayer 200 lbs. Spyker Hopper

The Pathfinder XC™ FS2200 hopper will handle up to 200 lbs. of granular material providing over one acre of maximum coverage.

Ferris Pathfinder XC™ FS2200 Ride On Spreader/Sprayer 16 Gallons of Liquid Capacity

Covers a maximum of 1.4 acres between fill-ups.

Ferris Pathfinder XC™ FS2200 Ride On Spreader/Sprayer Selectable Spray Width

The Pathfinder XC™ FS2200 allows the operator to select between two spray widths. A 3’ spray width is perfect for trim applications and narrow spaces. A 10’ broadcast spray is used for wide open spaces.

Ferris Pathfinder XC™ FS2200 Ride On Spreader/Sprayer 100% Stainless Steel Frame

Stainless steel resists corrosion from the granular and liquid chemicals distributed by the unit.

Ferris Pathfinder XC™ FS2200 Ride On Spreader/Sprayer Best-in-Class Maneuverability

A low-friction sulky pivots on a ¾” tapered roller bearing for smooth movement. No mechanical steering assistance is required.

Ferris Pathfinder XC™ FS2200 Ride On Spreader/Sprayer Compact Size

The Pathfinder XC™ FS2200 fits easily through a 36” gate, providing access to residential areas and condominium common areas.
attachments

Ferris Pathfinder XC™ FS2200 Ride On Spreader/Sprayer SALT SPREADER BAFFLE

Allows the Pathfinder™ XC FS2200 to spread salt to extend seasonal use. Not to be used with rock salt.

Ferris Pathfinder XC™ FS2200 Ride On Spreader/Sprayer SPARE PARTS KIT

A convenient package of high-wear parts that allow for fast service and maintenance.

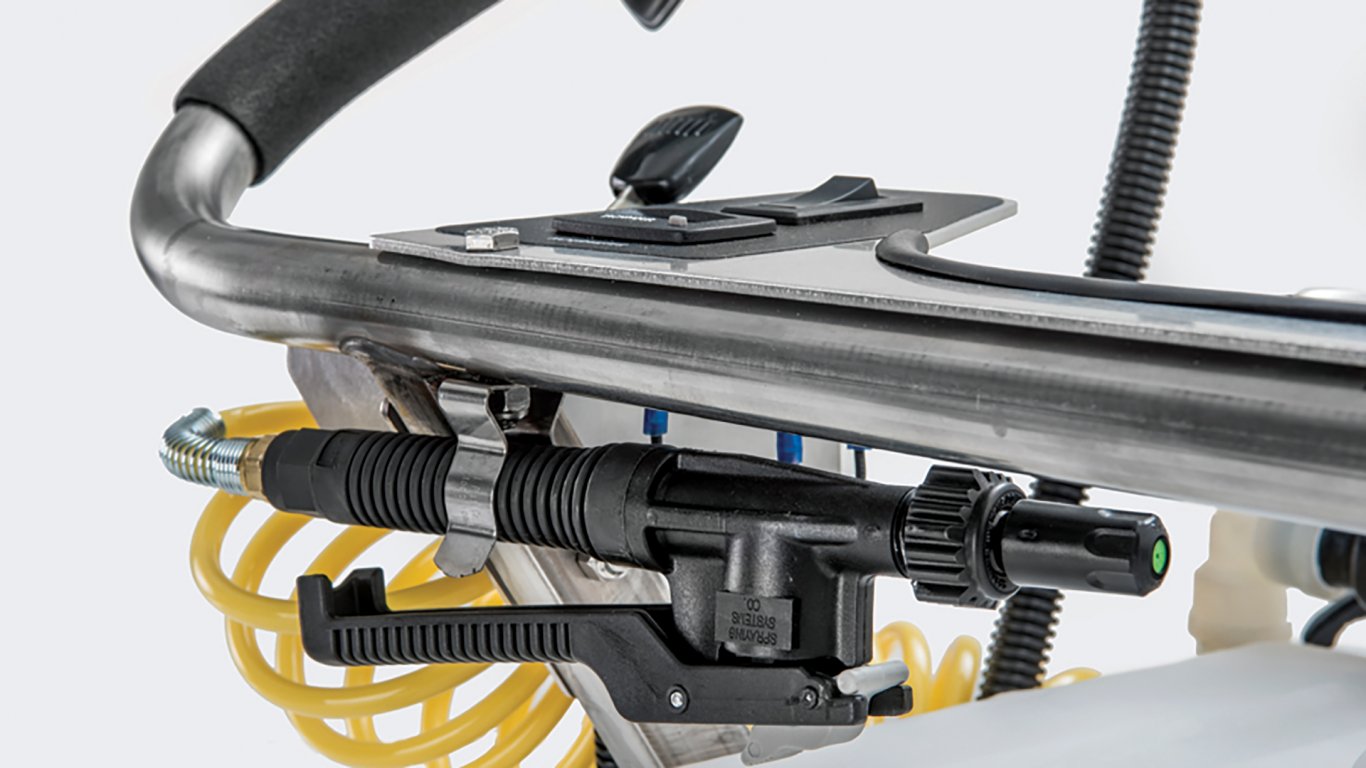

Ferris Pathfinder XC™ FS2200 Ride On Spreader/Sprayer SPRAY WAND

Spray wand attachment taps into the liquid tank for spot treatment of trouble spots or gardens.

Ferris Pathfinder XC™ FS2200 Ride On Spreader/Sprayer SPRAY BAR

Spray bar attachment converts the central spray nozzle on the Pathfinder™ XC FS2200 into three spray points.
