Overview

Precise, dependable and accountable

HARDI has produced sprayers since 1957 - meeting the needs of all farmers and crops worldwide - a key goal that has demanded the world’s best nozzles. Today the same basic HARDI philosophy promotes the efficient, effective and responsible plant care that ensures quality food production. The nozzle can dominate the sprayer performance. All of the sprayer components are important for safe and effective use, but it is the nozzle that can have the major influence on the performance of the crop protection product that it will apply.

The nozzle controls:

// The throughput [and therefore the dose]
// Quality of distribution
// Drop spectrum and coverage
// Distribution over the target
// Drop retention or reflection
// The degree of drift and downwind fall-out

Hardi Nozzles All these functions are considered by HARDI to ensure that the spray liquid is deposited exactly where it is needed, in its most effective form, and is not wasted.

HARDI has combined both design and material selection to produce a range of nozzles that suit the broad demands of both crops and the vast array of agrochemical products available today. This has been the basis for HARDI’s worldwide success.

Close co-operation between farmers, advisers, chemical companies, independent and regulatory bodies with HARDI’s agronomists has been the backbone of this continuing success.

Hardi Nozzles Nozzle selector

The HARDI nozzle selection tool can help you to choose the right nozzles for the application you are planning. Choose the desired volume and driving speed and select the current wind conditions.
Specifications
Model
Nozzles
Year
2023
Sale Type
New
Manufacturer
Hardi
Type
Sprayer components
field sprayers

Hardi Nozzles Standard Flat Fan nozzles

All-round flat fan nozzle. Recommended for all types of pesticide application where optimum coverage is demanded. This nozzle will give you excellent and uniform liquid distribution at boom heights from 14 to 28 in. (20 in. recommended to take care of uneven terrain or boom movements).

  • ISO: Flow, color and outer dimensions

  • Working pressure: 20 to 70 psi

  • Recommended for TWIN sprayers

  • SYNTAL – precision moulded thermoplastic

  • CERAMIC – extremely high durability

  • COLOR TIPS – for safe and easy handling



Hardi Nozzles LowDrift nozzles

LowDrift nozzles are recommended when optimum spraying conditions cannot be achieved (risk of drift) and spraying cannot be postponed.

  • ISO: Flow, color and outer dimensions

  • Working pressure: 20 to 70 psi

  • Restrictor designed for minimum chemical residues

  • SYNTAL – precision moulded thermoplastic

  • CERAMIC – extremely high durability

  • COLOR TIPS – for safe and easy handling

This nozzle will give you excellent and uniform liquid distribution at boom heights from 14 to 28 in. (20 in. recommended to take care of uneven terrain or boom movements).

Hardi Nozzles MINIDRIFT nozzles

The HARDI MINIDRIFT nozzle can be used for spraying at sub-optimal weather conditions, when spraying cannot be postponed. The MINIDRIFT nozzle will at low pressures reduce drift to a minimum.

  • Air inclusion nozzle

  • Working pressure: 20 to 80 psi

  • ISO flow, colors, sizes and nomenclature

  • Application rates from 6 to 40 gpa (at 5 mph)

  • SYNTAL – precision moulded thermoplastic

This nozzle will give you excellent and uniform liquid distribution at boom heights from 16 to 35 in. The droplet spectrum is coarse to very coarse; safe for drift control but without risking poor coverage and deposition on leaves. The venturi can easily be removed for cleaning the nozzle.

Hardi Nozzles MINIDRIFT DUO

The HARDI MINIDRIFT DUO nozzle can be used for spraying at sub-optimal weather conditions, when spraying cannot be postponed. The MINIDRIFT nozzle will at low pressures reduce drift to a minimum.

  • Working pressure: 20 to 80 psi

  • ISO flow, colors, sizes and nomenclature

  • 30° forward and backward angle

  • Application rates from 7 to 35 gps (at 6 mph)

  • SYNTAL – precision moulded thermoplastic

This compact flat spray air-injector nozzle offers droplet spectrum from medium to very coarse; safe for drift control but without risking poor coverage and deposition on leaves. The two angled fans increase the number of droplets and impacts on target compared to normal air injector nozzles. This improves the coverage on dense foliage and vertical targets. The injector can easiily be removed for cleaning the nozzle.

Hardi Nozzles INJET nozzles

The HARDI INJET nozzles can be used for spraying at sub-optimal weather conditions, or when spraying cannot be postponed. The HARDI INJET nozzles are recommended for most pesticide applications where reduced risk of drift is demanded.

  • Air inclusion nozzles with greater drift reduction

  • ISO flow, colors and nomenclature

  • Application rates from 3 to fo gpa (at 10 mph)

  • Pressure range: 40 to 140 psi

  • B-Jet border nozzle for precise application near sensitive areas

  • Available in SYNTAL and CERAMIC materials

The HARDI INJET & B-JET nozzles can be mounted using the 334083 ISO/INJET cap.

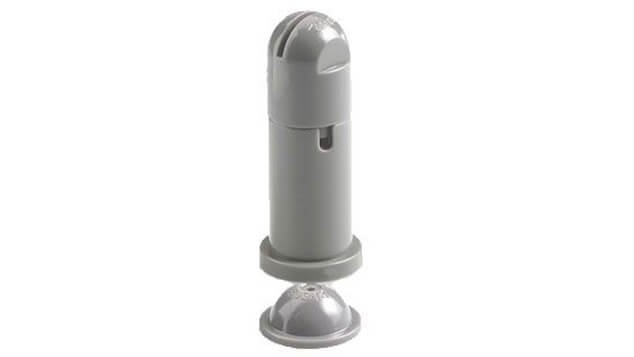

Hardi Nozzles QUINTASTREAM nozzles

Five [5] streams of liquid are distributed at different angles and flows by each Quintastream nozzle. Highest flow is from the middle stream and lowest in the outer, overlapping streams. HARDI QUINTASTREAM can be mounted using the filter casing without gasket (725737).

  • The fastest way to convert your sprayer into a high precision fertilizer applicator

  • 5 solid streams that minimise crop scorching

  • Particularly important for wide booms at fast speeds

  • ISO standard for easy calibration

  • Turn and Clean key for restrictor removal

  • Boom height 14 to 39 in.

Uniquely, this - patent pending - system allows for boom movements that do not influence distribution.

Hardi Nozzles F-80 Flat fan nozzles

This nozzle has an 80° spray angle. On boom sizes from 80 132 ft. boom height is often higher than 20 in. above the target. 80° nozzles provide good coverage with reduced drift risk at these higher boom heights and are also adaptable to band spraying.

  • ISO: Flow, color and outer dimensions

  • 80° spray angle

  • Working pressure: 20 to 70 psi

  • SYNTAL – precision moulded thermoplastic

  • CERAMIC - extremely high durability

The 80° nozzle is suitable for big booms or row crop / band spraying with either low boom or nozzles at droplegs.

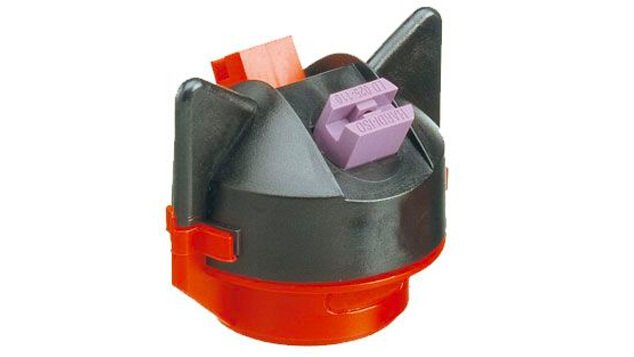

Hardi Nozzles DUOCAP nozzles



HARDI DUOCAP gives you higher volume rate while still maintaining proper droplet size. Fitted with two Flat Fan or LowDrift nozzles HARDI DUOCAP will give Fine to Medium spray, suitable for fungicide spraying. Two different nozzles can be used.A Standard and a MINIDRIFT nozzle will give you the dual benefit of having fine droplets that ensures good coverage in the top of the crop and Coarse droplets that penetrates to the lower and more dense areas.

HARDI DUOCAP fitted with two MINIDRIFT nozzles will give superior penetration into dense crops like Potatoes and Soybeans.

Double-up your application

  • Improved coverage

  • Angled spray ensures penetration i dense crops

  • Can hold all ISO nozzles

  • 30° forward and backward angle

Hardi Nozzles Large drop flat spray nozzles

HARDI foam nozzles are excellent for application of liquid fertilizers. Choose foam nozzles for broad leaf application - the large air inclusion bubbles will be reflected on the leaves and minimize crop damage.

The nozzle is used in combination with the 1553 Solid Stream nozzle.

  • Spray angle up to 150°

  • Extremely coarse droplet spectrum

  • Can work at nozzle spacing up to 40 in.

Hardi Nozzles Cone nozzles

HARDI 1553 Cone nozzles are used without swirl plates for solid stream and with swirl plates for hollow cone and full cone spraying.

Use the solid stream for liquid fertilizer on boom sprayers.

  • For application of liquid fertilizer at 10 in. nozzle spacing, with a minimum risk of scorching

  • Flow rates from 0.077 to 8.27 gpm (at 15 to 360 psi)

  • SYNTAL – precision moulded thermoplastic: precise, resistant and durable

hand operated

Hardi Nozzles Hollow cone nozzles

This nozzle is designed for knapsack sprayers. The restrictor and the nozzles are clicked together to avoid loosing parts when taken apart for cleaning.

  • Very wide spray angle

  • One piece construction

  • SYNTAL

Hardi Nozzles REFLEX nozzles

These nozzles are designed so the application volume is the same for all sizes at 14.5 psi and a normal walking speed (2 mph), only the spray width changes.

  • Spray width from 1.5 to 6.6 ft.

  • Even distribution across the swath

  • 20 gpa at 14.5 psi

Hardi Nozzles Adjustable nozzles

These nozzles can be used on knapsack sprayers or spray guns, where you want to change the characteristics of the spray cone and the demands for precision is less important.

  • Adjustable by turning the tip

  • From solid stream to hollow cone

  • Available with M18 thread
special nozzles

Hardi Nozzles Cone nozzles



The difference between the 4 swirl plates is the droplet size. The blue swirl plate has a very fine droplet spectrum, the grey a fine droplet spectrum and the black swirl plate has a medium droplet spectrum. The white swirl plate has a medium droplet spectrum and is giving a full cone spray.
A large drop adaptor (371077) is available for the grey swirl plate. This adaptor changes the droplet spectrum to very large droplets.

HARDI 1553 Cone nozzles are used with one of the four available swirl plates for hollow cone and full cone spraying. The hollow cone nozzle can be used for pesticide application on boom sprayers, mistblowers or knapsack sprayers. The HARDI 1553 cone nozzle can also be used without swirl plates for solid stream application



Hardi Nozzles 65° Flat spray nozzles

This nozzle provides an elliptical spray pattern (FlatFan) with a 65° angle. A uniform distribution is obtained, with correct overlap between spray patterns from adjacent nozzles.
This nozzle has additional applications for industrial purposes.

  • Recommended pressure range: 20 to 70 psi

  • Recommended boom height above target: 25 to 30 in.

  • SYNTAL

Hardi Nozzles 25° Flat spray nozzles

This nozzle provides an elliptical spray pattern (flat fan) with a 25° angle. The narrow spray angle results in a high impact spray, which is well suited for cleaning as well as for spraying trees and bushes, where a long range is very useful.

  • Pressure range: 2 to 25 bar

  • SYNTAL

Hardi Nozzles Misting nozzles

This nozzle consists of a synthetic tip and a blue swirl plate (370156). The droplet spectrum is very fine. The low capacity and extremely fine atomization make this nozzle useful for special purposes such as adjustment of air temperature and humidity in hot climates.

  • Pressure range: 2 to 5 bar

  • Hollow Cone nozzle

  • Very Fine droplets

  • SYNTAL

Hardi Nozzles Deflector nozzles

Deflector spray nozzle of synthetic material. This nozzle type produces a round spray pattern (360°). The speed of the droplets is low, producing a slowly dispersing cloud. The atomization and dispersion are optimal between 1 to 5 bar. Useful for raising the humidity in greenhouses etc.

  • Pressure range:1 to 10 bar

  • SYNTAL

Hardi Nozzles Multi-hole rinsing nozzles

These nozzles are mainly used for washing out residues in chemical containers and bags. Can also be used for some irrigation purposes. Tests have shown that the most efficient way of cleaning chemical containers is by using these rinsing nozzles.
Nozzle 1  - with all the holes

  • Multi hole rinsing nozzle

  • 40 solid streams

  • Pressure range: 1.5 to 5 bar

  • SYNTAL

Nozzle 2  - with pointed tip

  • Rotary rinsing nozzle

  • Rotary spray swaths

  • Pointed top for easy foil opening

  • SYNTAL

Hardi Nozzles Agitation nozzles

This nozzle type is used for tank agitation. The venturi effect of the nozzle increases the agitation several times in relation to the liquid passing through the calibrated part of the nozzle. Useful for a fast and continuous mixing of for example pesticides in suspension.

  • Pressure range: 1 to 15 bar

  • SYNTAL

Hardi Nozzles Tank cleaning nozzles

This nozzle is made for cleaning of the insides of sprayer tanks. The different angles of the 8 solid streams ensure an excellent rinsing of the entire inside surface of the sprayer tank.

Hardi recommends the use of a cleaning agent to ensure sufficient cleaning of the tank.

  • Rotating nozzle for tank cleaning

  • 8 solid streams at high velocity

  • SYNTAL
