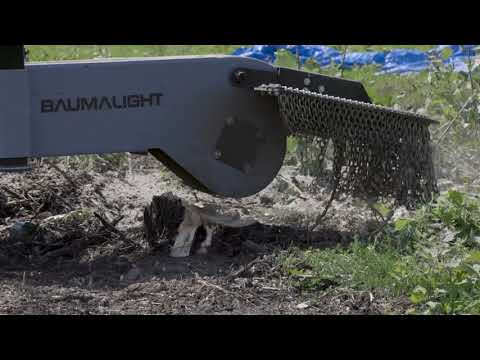

High Performance Skid Steer Stump Grinder - S40
The S40 stump grinder is mounted with a bent axis piston motor. By matching a motor to your skid steers hydraulic flow these high efficiency motors make the most hydraulic power transforming it into the highest available stump grinding performance. Stocked with 20 High speed teeth the massive 1.25” thick steel rotor provides the back bone for the Skidsteer mounted stump grinder. The high number of teeth means that each tooth needs to do less work. Each tooth only needs to make a small cut, because the work is shared by more of these highspeed teeth, which last longer and typically only need 2 or 3 replaced at a time. The bolt-on designed teeth allow for straightforward replacement. The teeth can also be rotated up to 3 times to provide a renewed cutting surface even in the field.
The extra-large Blast shield is designed with dual rows of chain curtains to contain and control chips during grinding. The Blast shield is hinged to give the best protection and chip control throughout the grinding process. This hinge also allows the shield to be raised to get into tight areas and for easy access to the rotor and teeth.
Model
S40
Category Name
Agriculture
Year
2024
Sale Type
New
Manufacturer
BaumaLight
Hitch
Quick Attach
Swing Arc
85°
Motor Type
Gerotor
Rotor Size
24"
Hydraulic GPM
Check Stump Cutting Size Chart
Number Of Teeth
20
Recommended HP Size
50-120
Tooth Part Number
H3000
Tooth Construction
High speed
Cutting Wheel Speed
Depends on GPM
Maximum Carrier Size
Check GPM & PSI
Over Torque Protection
Remote
Maximum Horizontal Cut
22"
Cutting Depth - Below Ground
24"
Unit Weight (Shipping) Lbs.
1,200
Cutting Height - Above Ground
No limit
Maximum Cutting Depth - Per Pass
1"
No. Of Remotes Required - Hydraulic
1
Features
|
All Baumalight products are sold through our network of equipment dealers. For you, this means better product support, after-sales service, maintenance and product warranty from your local, trusted dealership |
|
Is one of your skidsteers older, without an auxiliary electrical connection? We also have an in-cab adapter to plug into your Aux Electrical Connected attachments that will allow you to run them. Plug the adapter into the attachment, connect it to 12V and now you can run your new attachment on an older skidsteer. |
Visibility Excellent Visibility from the operators seat.
|
Swing Arm Dual swing cylinders for smoother, more controlled swing speed operation. |
|
Double shielded hoses for extra protection. |
Aux Baumalight now offers a more direct and simple way of connecting to your skid steer's auxiliary electrical connection. Simply connect the hydraulics and plug in the electrical. Now you can control the attachment from inside your cab. |
|
Our industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for your stump grinding needs. |
Rotor The massive 1.25" thick steel rotor provides the back bone for the Holt Eraser stump grinder. It's the anchor of the carbide teeth. |
|
Designed with an extra-large Blast shield with dual rows of chain curtains to contain and control chips during grinding. After grinding it also helps clean up giving you the ability to back fill without switching attachments. |
|
The S40 Stump Grinder comes with 3 free replacement teeth and 1 extra teeth holder. These replacement teeth can be conveniently stored in the spare tool compartment. |
|
|
